Aesculap Miethke Adjustable Valves

This page was last updated on April 8th, 2024

Aesculap has two valves which can be adjusted using a magnetic programmer..  The proGAV is a pressure differential valve that can have its opening pressure adjusted.  The proSA is a gravity activated valve whose resistance varies iwht its orientation to the earth’s gravitational field.



Valve Design

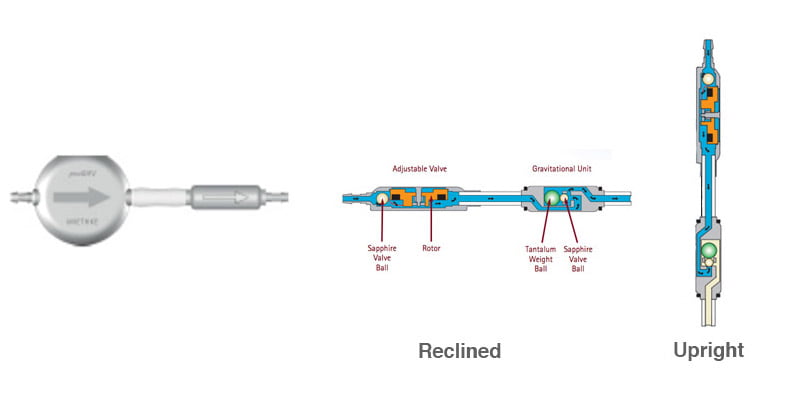

proGAV Valve

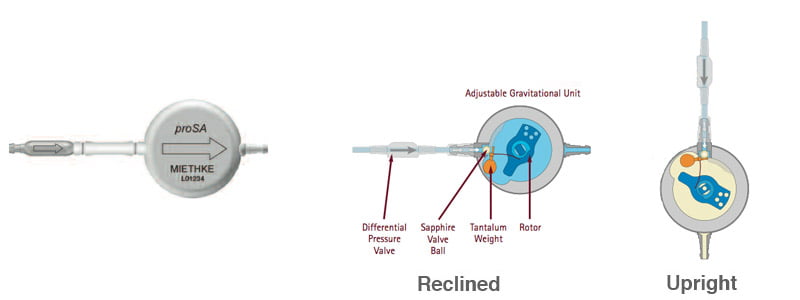

proSA Valve



Radiographic Images

proGAV

ProGav Valve

Distal to this valve an additional gravity activated valve (either a Shunt Assistant or a proSA valve is commonly found.

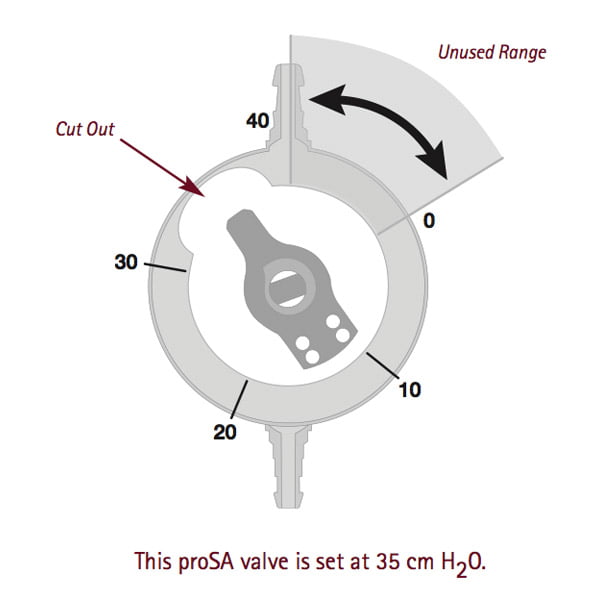

proSA

ProSA Valve

Proximal to this valve a pressure differential valve (either a miniNAV or adjustable proGAV valve) is commonly found.

Valve Opening Pressures

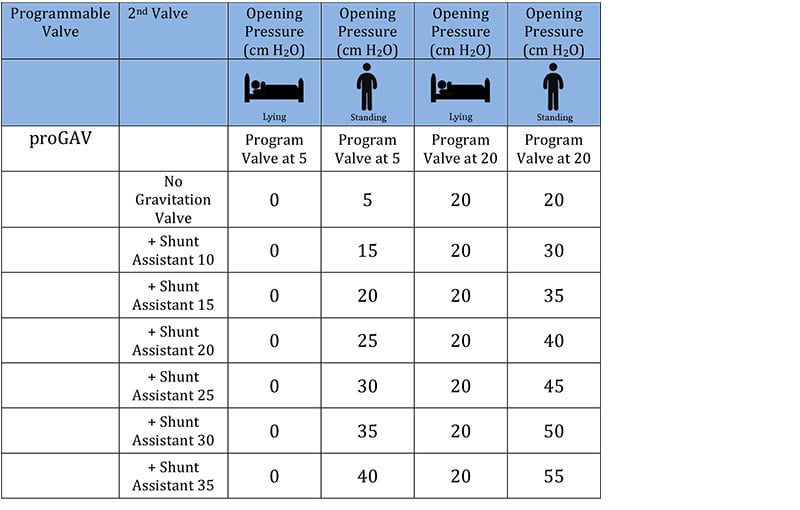

proGAV Valve

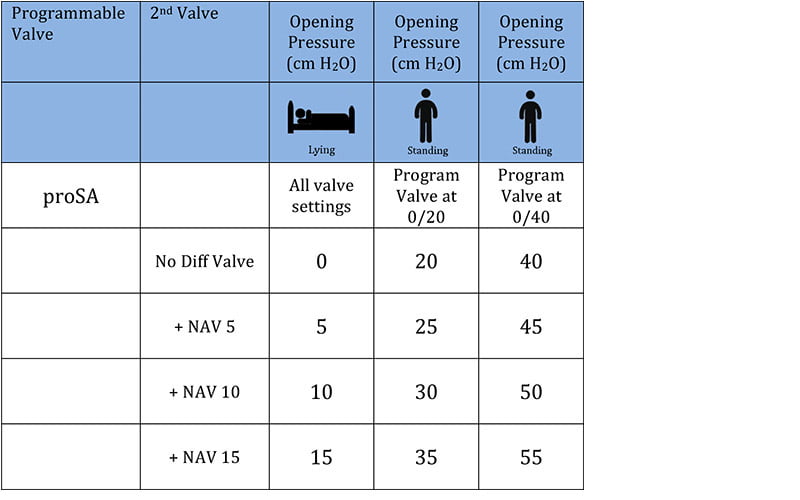

proSA Valve

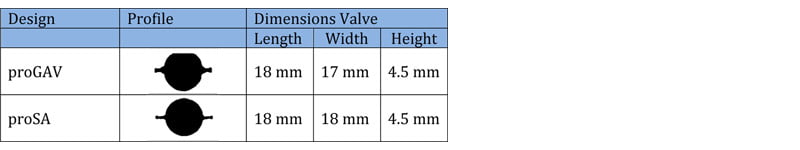

Valve Dimensions



Valve Assemblies

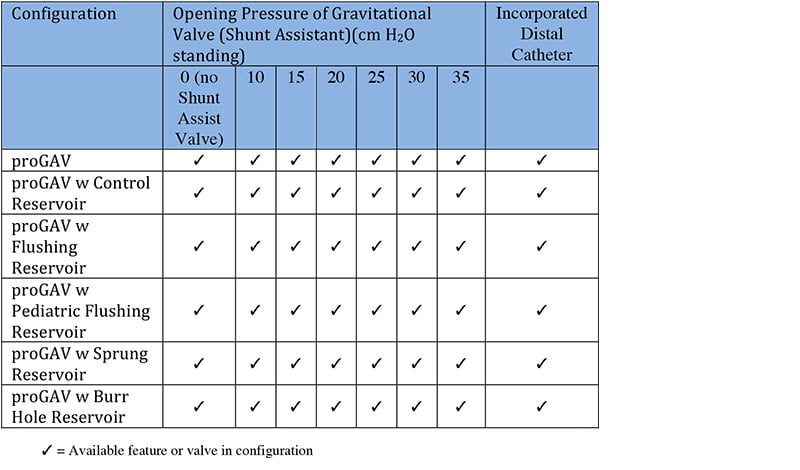

proGAV



proSA

proGAV + proSA
